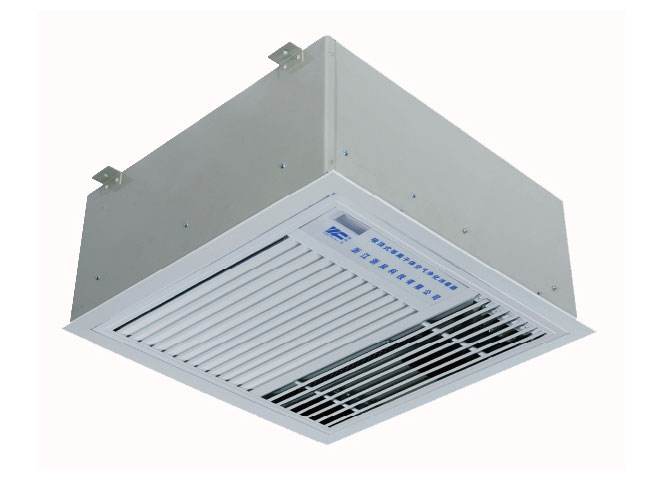

Ceiling mounted plasma air purification disinfector

Product category: Disinfection purifier

Product Usage:
◆ Plasma Purification and Disinfection
◆ Negative ion clear air
◆ Effectively remove benzene, xylene and formaldehyde

Tel：0575-82366508
return

    1、Features and configurations

    ◆ Plasma purification and disinfection
    ◆ Negative ion clear air
    ◆ Effectively remove benzene, xylene and formaldehyde
    ◆ Effectively degrade organic compounds such as TVOC
    ◆ Effectively remove odors, smoke, and PM2.5 and PM10 inhalable particles
    ◆ Automatic detection of air pollution, automatically turning on when exceeding the standard
    ◆ Filter cleaning tips
    		 ◆ Manual, remote control, and microcomputer intelligent control, with three preset time periods for automatic switching on and off, Recurring operation and
    &Nbsp& Nbsp& Nbsp& Nbsp& Nbsp& Nbsp; Power failure memory
    Display of accumulated working hours
    ◆ Automatic alarm and shutdown of plasma reactor failure
    ◆ Automatic alarm for fan failure and

    2、 Installation area

          Embedded and installed in indoor suspended ceiling to purify and disinfect circulating air

    3、 Main technical indicators

    Applicable area: 100 m3
    ◆ Power supply: 220V ± 10%, 50Hz
    Rated power: 50W
    ◆ Air volume: 1000 m3/h
    Ozone content: ≤ 0.16 mg/m3
    		 ◆ Number of Particle number in suspension L: ≤ 10500
    ◆ Natural bacterial extinction rate: ≥ 90%
    ◆ PM2.5 particle removal rate: ≥ 99.9%
    Negative ion generation: ≥ 6 × 106 pieces/m3
    ◆ Plasma density: ≥ 1 × 1016m-
